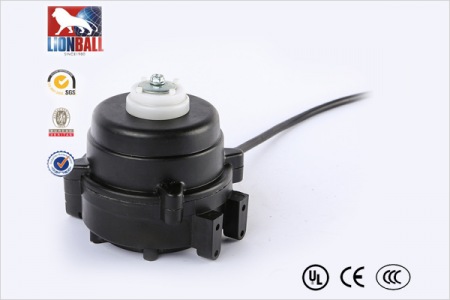

节能冷柜电机ECM12
1: Parameter of function(电机参数)
| Motor |
Voltage |
Frequency |
Current |
Speed |
Input/Output |
|
ECM12A110 |
1~110V |
50/60 |
0.25 |
1550 |
22/15 |
2：Airflow(风量测试)

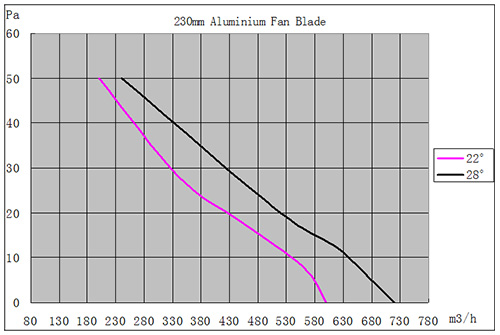

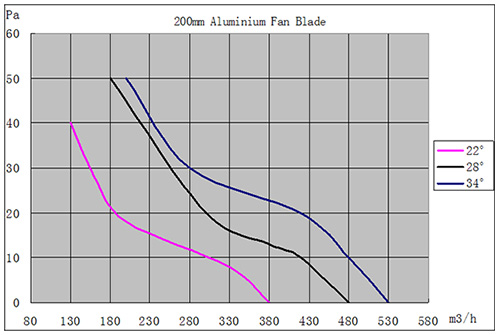

ECM motor Air performance curves measured at a constant speed of 1,550 rpm.
| Index |
Motor |
Axial impeller |
Axial impeller |
Input |
|
1 |
ECM12 |
200 |
22 |
5.8 |
|
2 |
ECM12 |
200 |
28 |
8.4 |
|
3 |
ECM12 |
200 |
34 |
13.6 |
|
4 |
ECM12 |
230 |
22 |
11.6 |
|
5 |
ECM12 |
230 |
28 |
17.4 |
|
6 |
ECM12 |
254 |
22 |
17.3 |
﹡ Speed = 1550RPM
