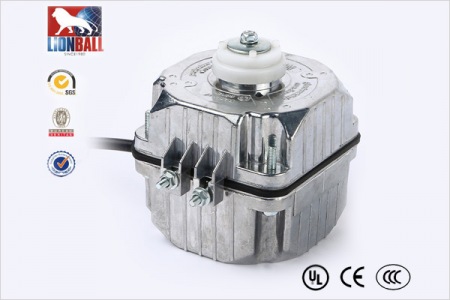

节能冰冻电机ECQ20
1: Parameter of function(电机参数)
| Index |
type |
Voltage |
Frequency |
Speed |
Input/Output |
Mass |
|
1 |
ECQ20A230 |
198-253 |
50/60 |
1300/1550 |
30/20 |
0.7 |
|
2 |
ECQ20A115 |
90-128 |
50/60 |
1300/1550 |
30/20 |
0.7 |
2： Airflow(风量测试)
乐彩汇

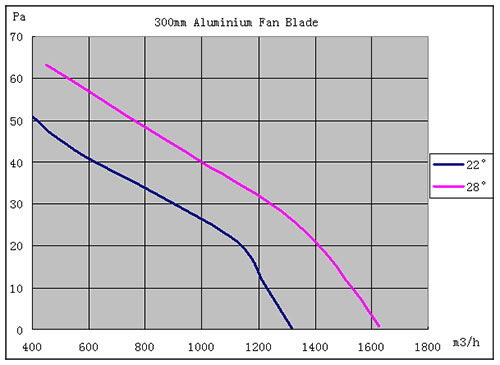

ECQ motor Air performance curves measured at a constant speed of 1,300 rpm.
| Index |
Motor |
Axial impeller |
Axial impeller |
Input |
|
1 |
ECQ20 |
254 |
15 |
20.5 |
|
2 |
ECQ20 |
300 |
22 |
24.4 |
|
2 |
ECQ20 |
300 |
28 |
28.0 |
﹡ Speed = 1300RPM

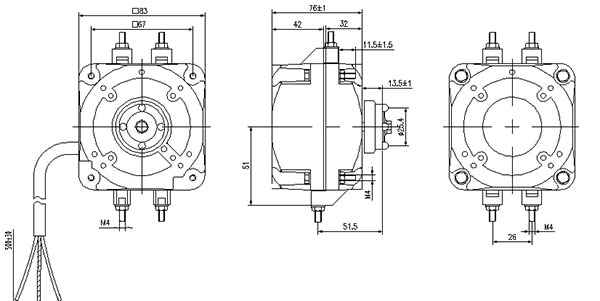

3:Dimension of installation（机械尺寸）
